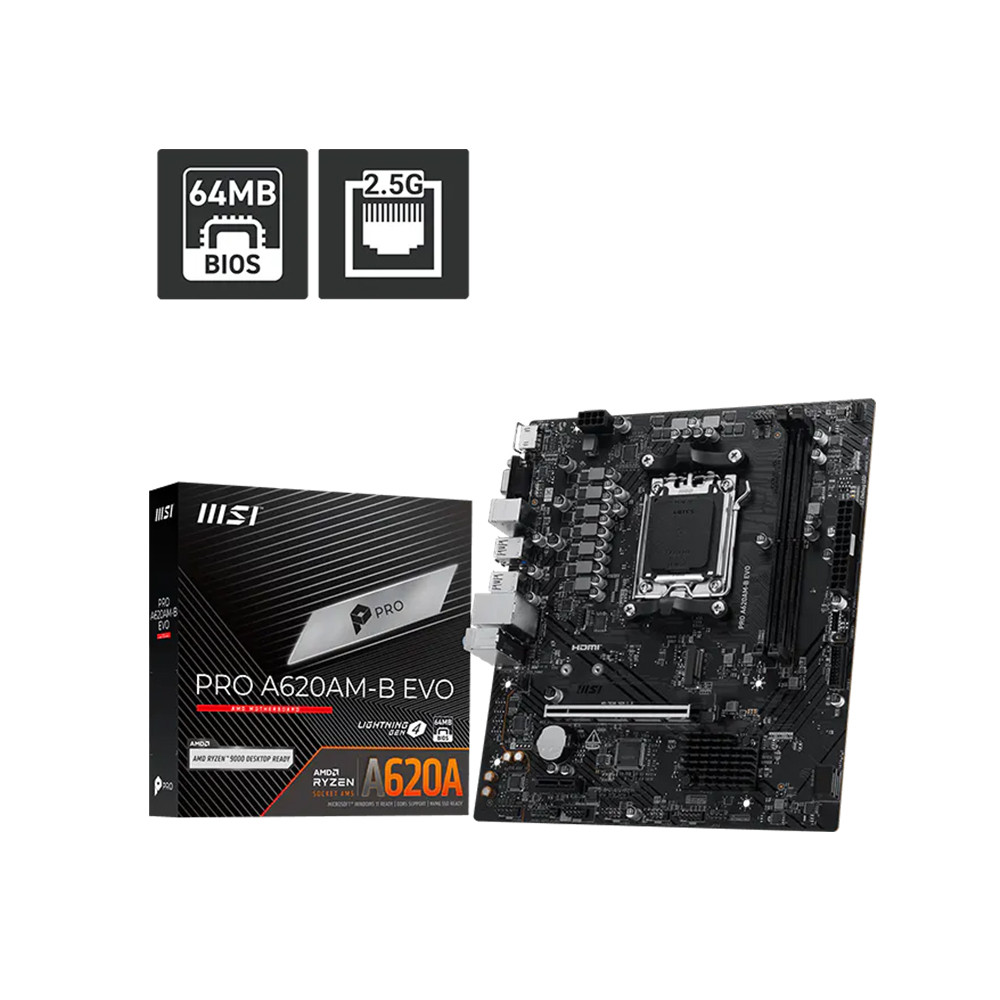

Mainboard MSI PRO A620AM-B EVO DDR5

Sản phẩm

Bo mạch chủ

Tên Hãng

MSI

Model

CPU hỗ trợ

AMD

Chipset

AMD A620A

RAM hỗ trợ

2x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6800 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MT/s
• 1DPC 2R Max speed up to 6000+ MT/s

Khe cắm mở rộng

1x PCI-E x16 slot
• Supports x16 (For Ryzen™ 9000 and 7000 Series processors)
• Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports x4 (For Ryzen™ 8500/ 8300 Series processors)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Ổ cứng hỗ trợ

1x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
2x SATA 6G

M2_1 slot

Cổng kết nối (Internal)

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports

Cổng kết nối (Back Panel)

1. HDMI™
2. VGA
3. Keyboard/Mouse
4. USB 5Gbps Type-A
5. LAN port
6. Audio connectors
7. USB 2.0

LAN / Wireless

Realtek^® RTL8125 2.5G LAN

Kích cỡ

mATX
218mmx243.84mm
