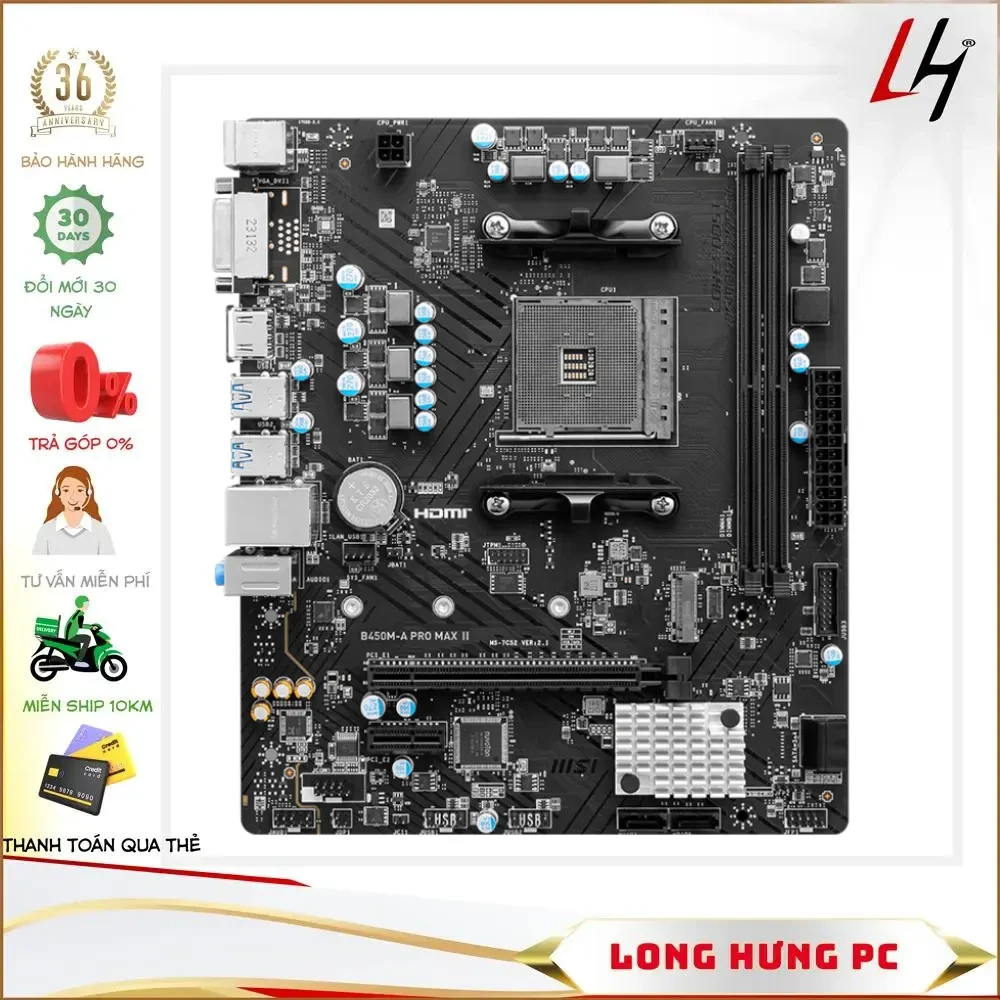

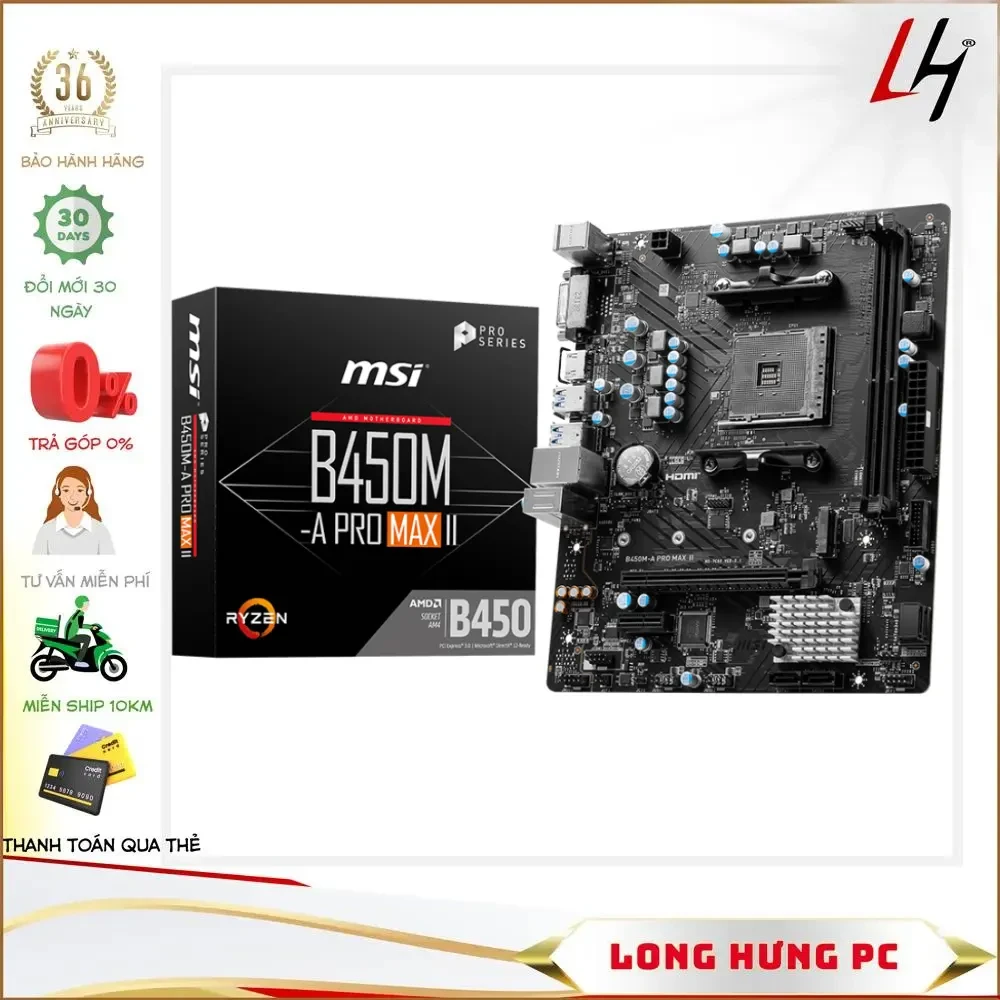

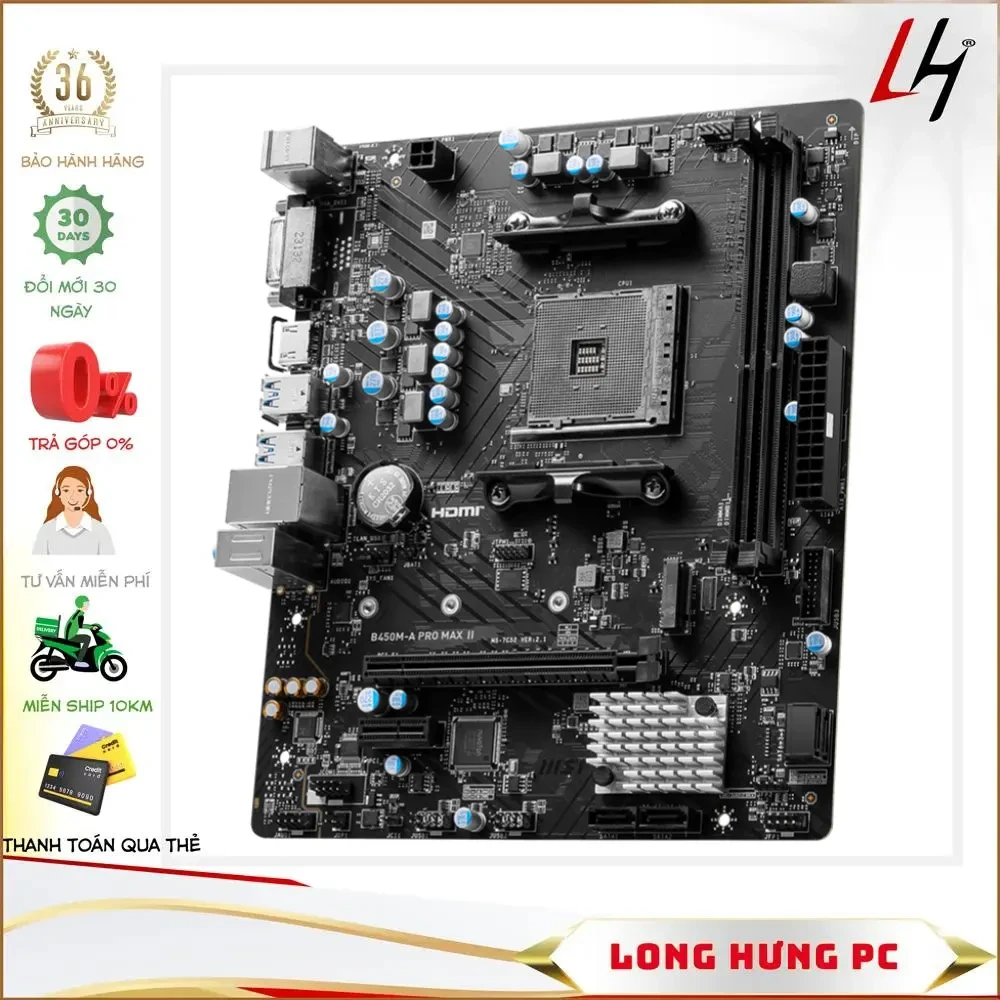

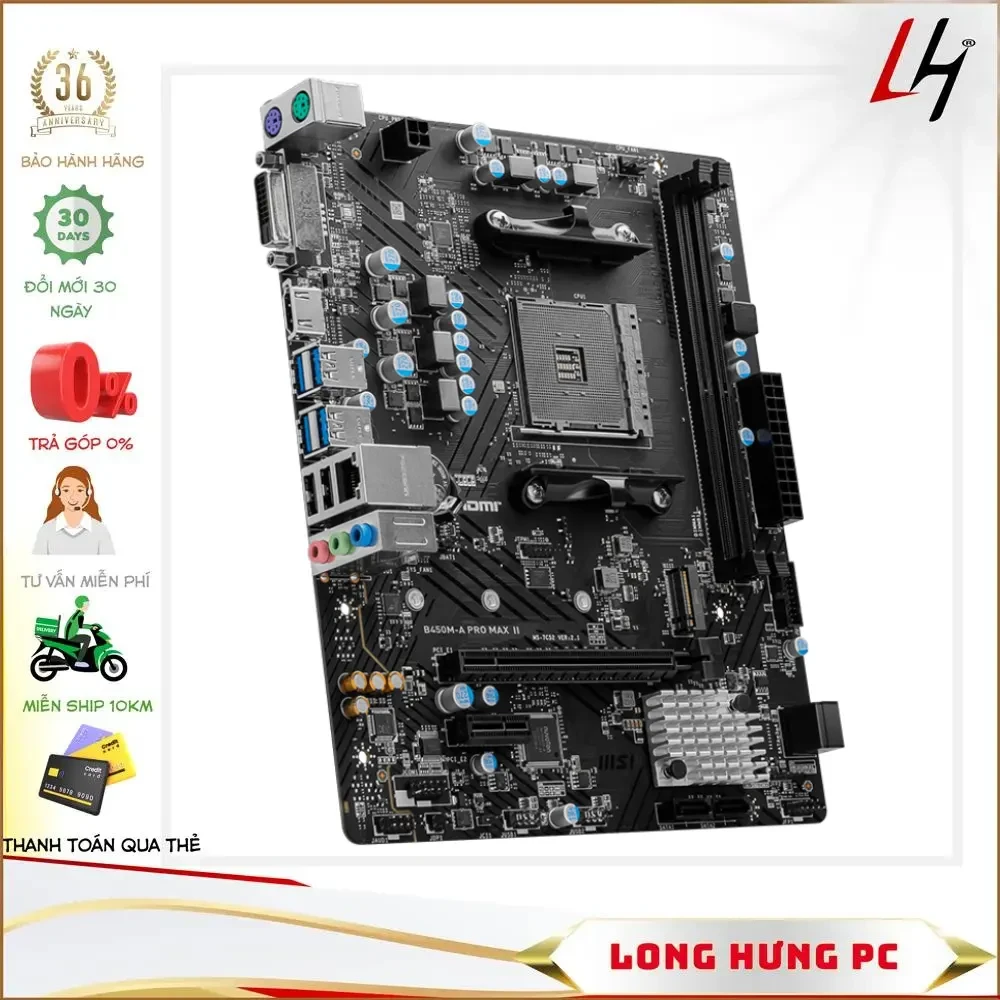

Mainboard MSI B450M-A PRO MAX II

Mã SP:

0 đánh giá

Socket: AM4

Kích thước: m-ATX

Khe cắm RAM: 2 khe (Tối đa 64GB)

Khe cắm mở rộng: 1x PCI-E x16 slot, 1x PCI-E x1 slot

Khe cắm ổ cứng: 1x M.2, 4x SATA 6G

Xem thêm

Giá khuyến mại:

1.650.000 đ

Bảo hành: 36 tháng

Số lượng:

Mua ngay Giao hàng tận nơi nhanh chóng

GỬI LIÊN HỆ

Thông số kỹ thuật Đánh giá sản phẩm

CPU (MAX SUPPORT)	Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series Desktop Processor and Athlon™ with Radeon™ Vega Graphics desktop processors Socket AM4
SOCKET	AM4
CHIPSET	AMD B450
MEMORY	2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE) Supports Dual-Channel mode Supports non-ECC, UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Slot	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset)
Storage	1x M.2 M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
Internal IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports

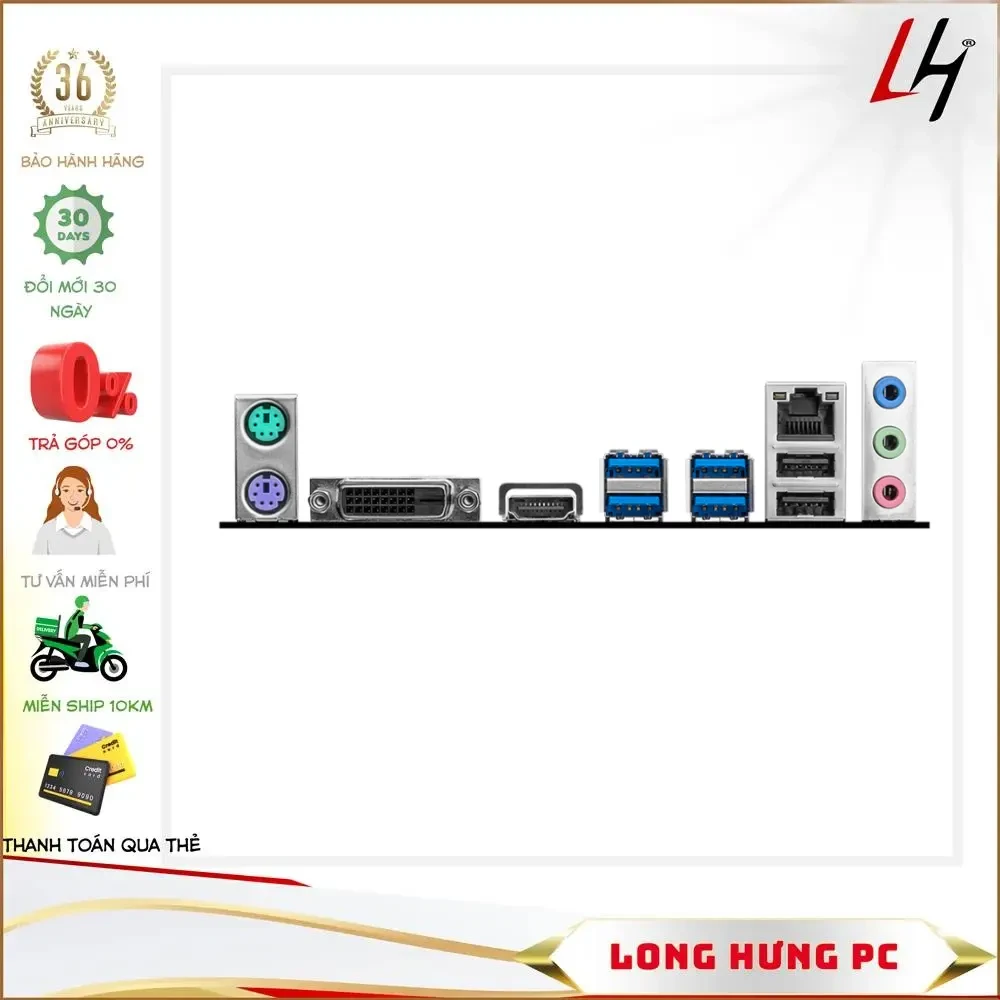

BACK PANEL PORTS	Keyboard/Mouse DVI-D HDMI™ USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Audio connectors USB 2.0
PCB Info	mATX 200mmx236mm
LAN	Realtek^® 8125 2.5Gbps LAN controller

CPU (MAX SUPPORT)	Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series Desktop Processor and Athlon™ with Radeon™ Vega Graphics desktop processors Socket AM4
SOCKET	AM4
CHIPSET	AMD B450
MEMORY	2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE) Supports Dual-Channel mode Supports non-ECC, UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Slot	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset)
Storage	1x M.2 M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
Internal IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports
BACK PANEL PORTS	Keyboard/Mouse DVI-D HDMI™ USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Audio connectors USB 2.0
PCB Info	mATX 200mmx236mm
LAN	Realtek^® 8125 2.5Gbps LAN controller
