Thương hiệu: Huananzhi
Loại sản phẩm: Mainboard
Model: B760M-K DDR4
Hỗ trợ bộ nhớ: 2 x DDR4 Tối đa 64GB
Hỗ trợ Socket: LGA 1700
Chipset: B760
Giá khuyến mại:
Liên hệ|
Model |

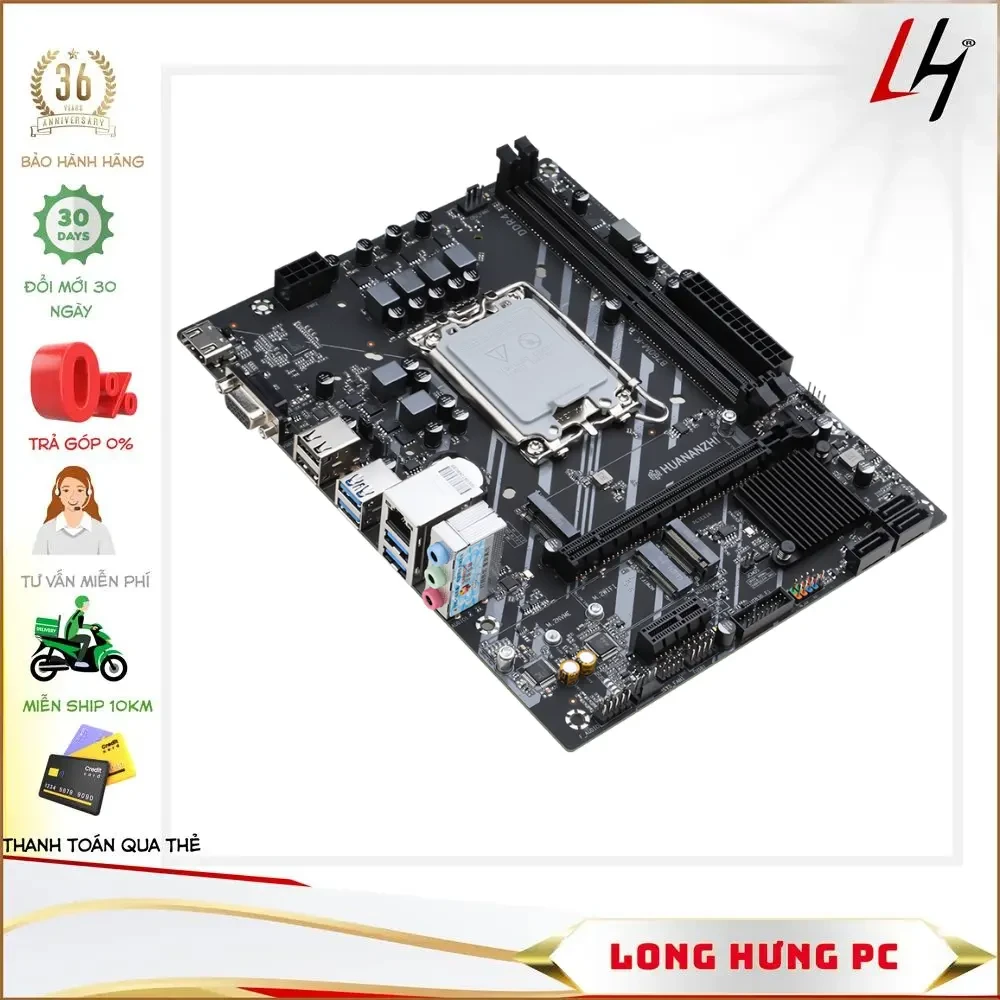

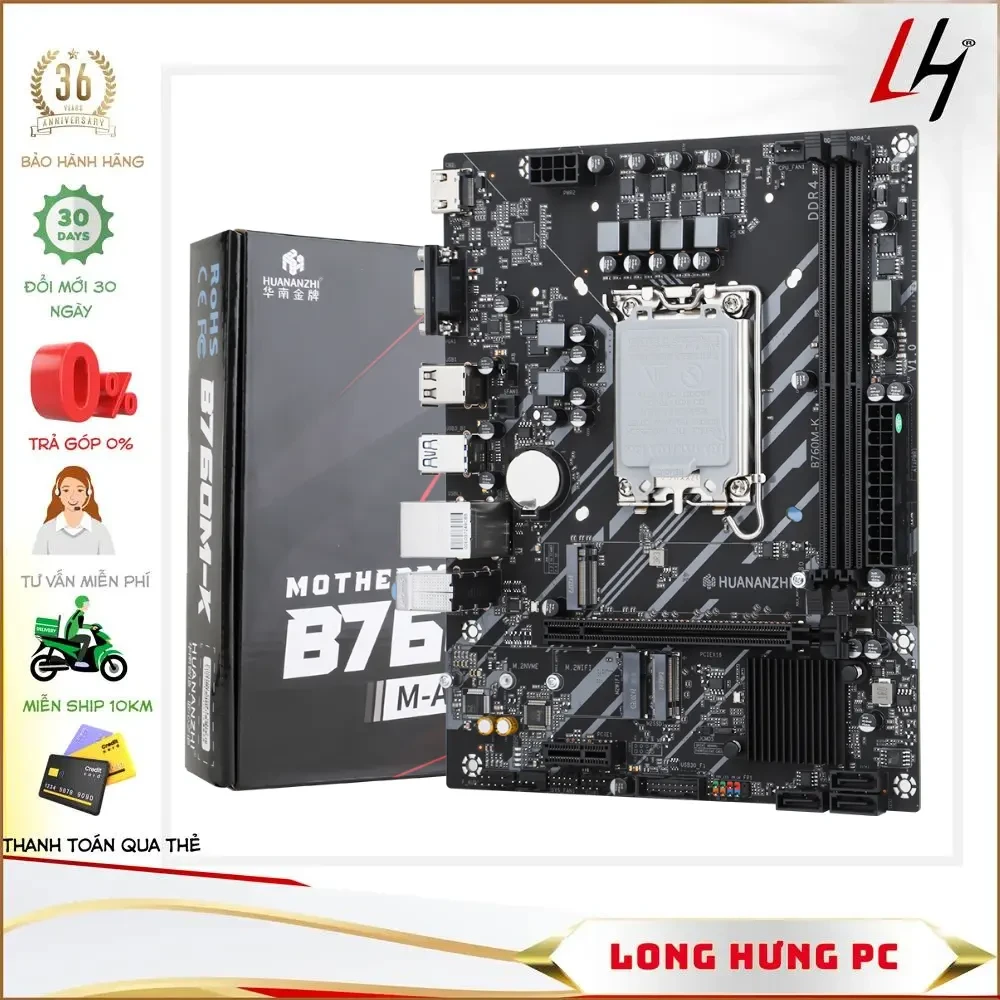

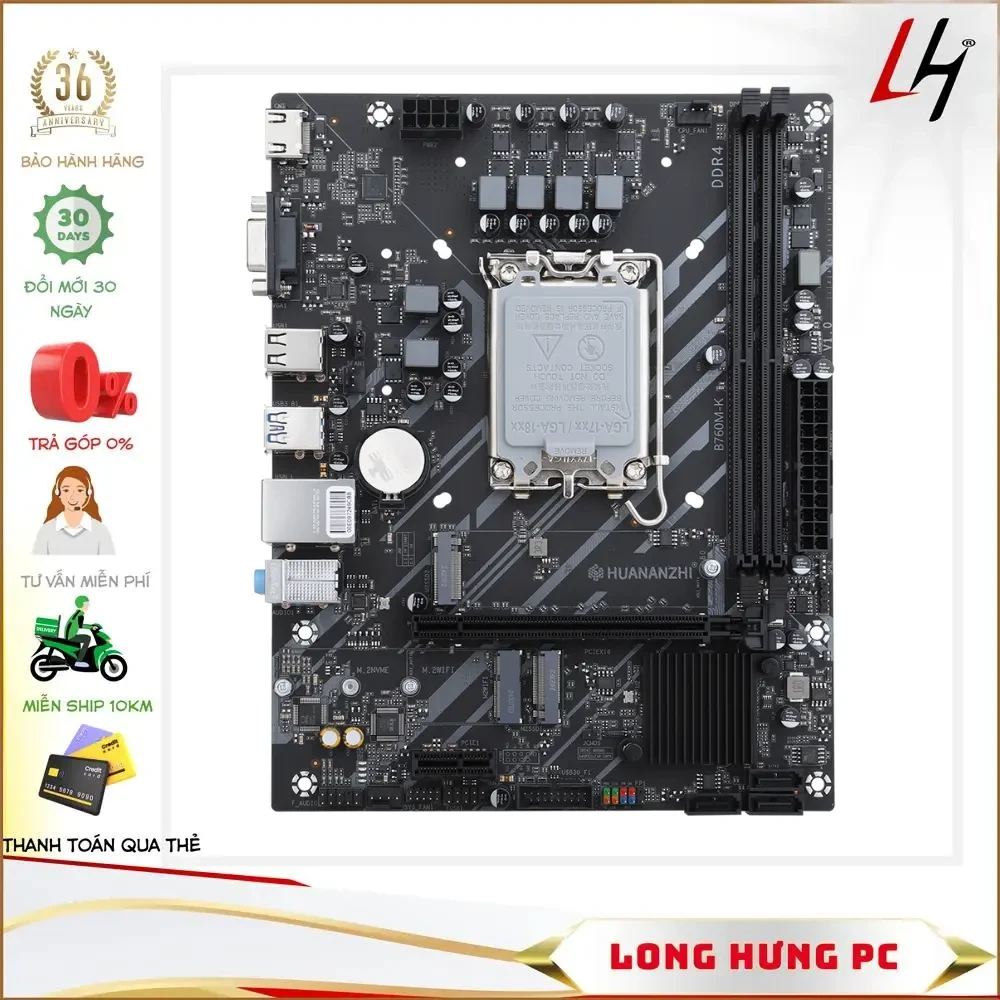

HUANANZHI B760M-K Motherboard |
|
Main chipset |
Intel B760 |
|
CPU Socket |
Support Intel LGA1700 platform processor |
|
Memory slot |
2 x DDR4 memory slot |
|
Memory standard |
Support dual channels DDR4 3200/2933/2666/2400MHz Memory(Depends on CPU/supports XMP)，Max support 64 GB |
|
Storage interface |
3 x SATA 3.0 6Gbps |
|
Expansion Slots |
1 x PCI Express 4.0x16 ，1 x PCI Express 3.0 x1 |
|
Expansion interface |
2x M.2 2280 NVME PCIE X4 4.0，1x M.2 WIFI (Support CNVI) |
|
Soud Track |
Realtek High Fidelity Audio |
|
Network Card |
Realtek Gigabit network card RTL8111H |
|
Power interface |
24PIN+8PIN |
|
FAN PIN |
1xCPU_FAN PIN，1xSYS_FAN PIN |
|
power supply |
6-phase power supply |
|
PCB layers |
4-layer PCB |
|
Dimension |
218*170MM M-ATX |
|

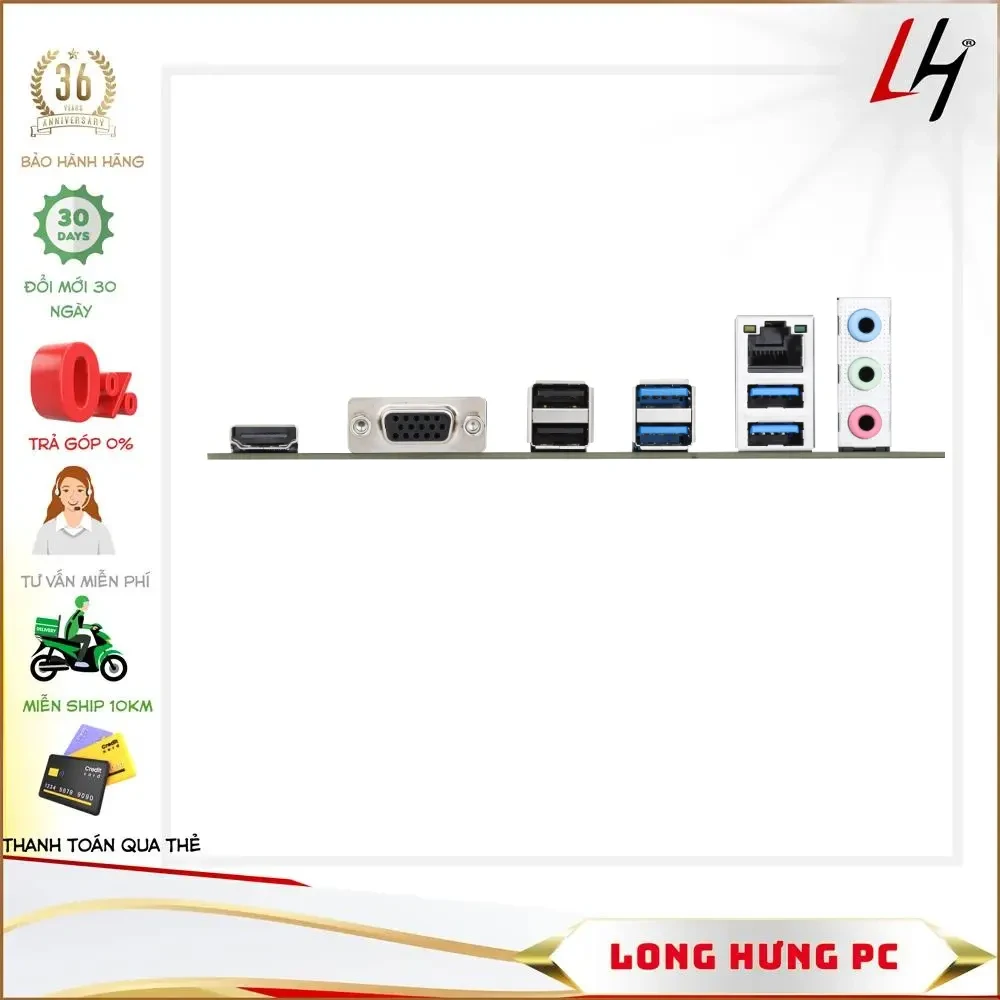

Rear panel interface |
4x USB3.0 interface，2x USB2.0 interface，1x Inetwork interface，1x 3-hole audio interface，1x VGA |
|
Front panel interface |
1xUSB2.0 PIN，1xUSB3.0 PIN，1xFront audio PIN，1xCOM PIN，1xDebug PIN，1xPower on/restart pin，1xDebug indicator |
|
Support system |
Windows10 Windows11 |
|
BIOS |
AMI UEFI BIOS |
|
Packing list |
1 x Motherboard，1 x SATA data cable，1xWarranty card，1xI/O shield back plat |
|
