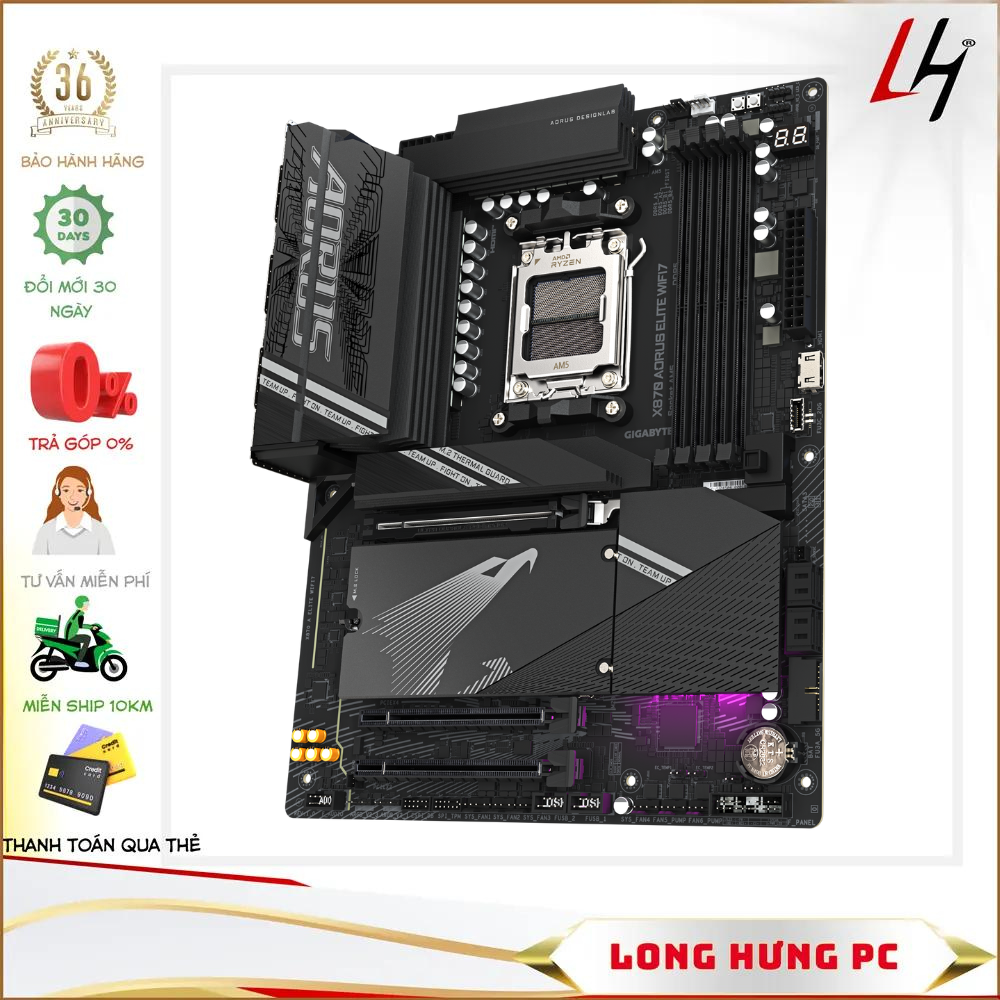

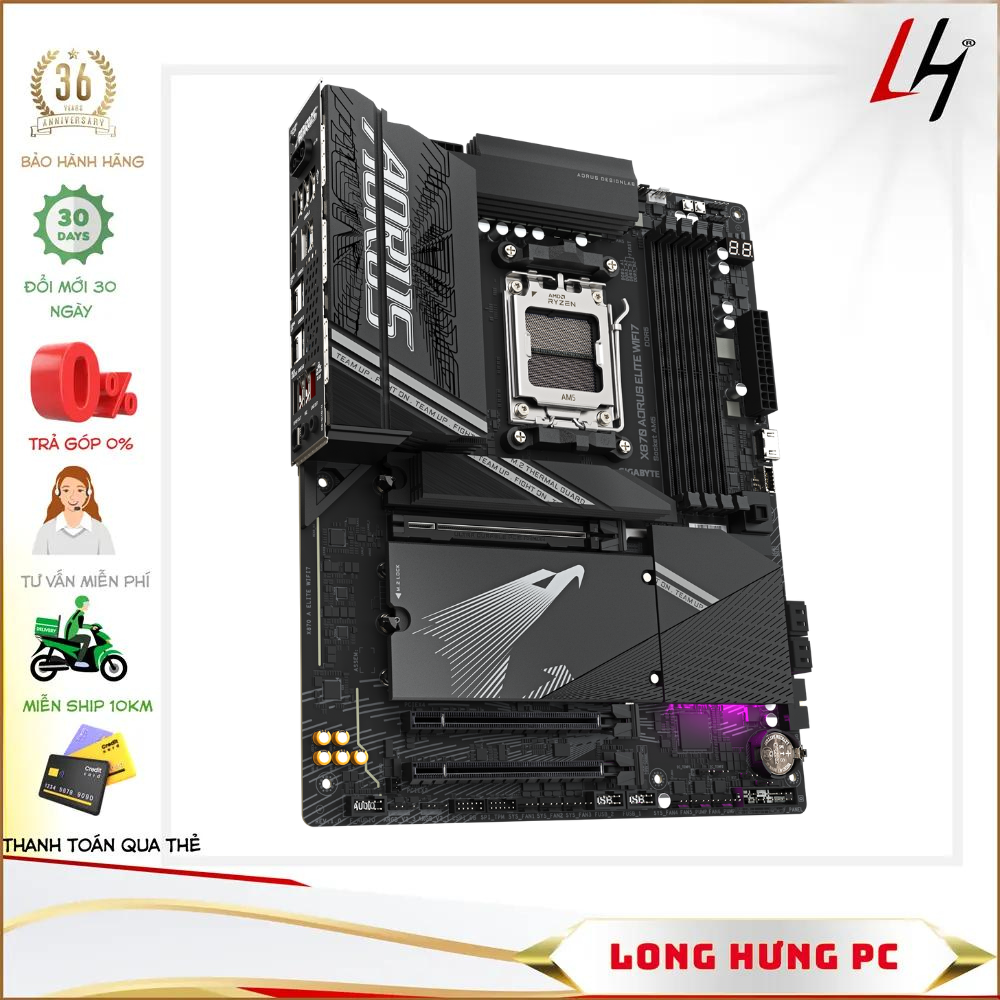

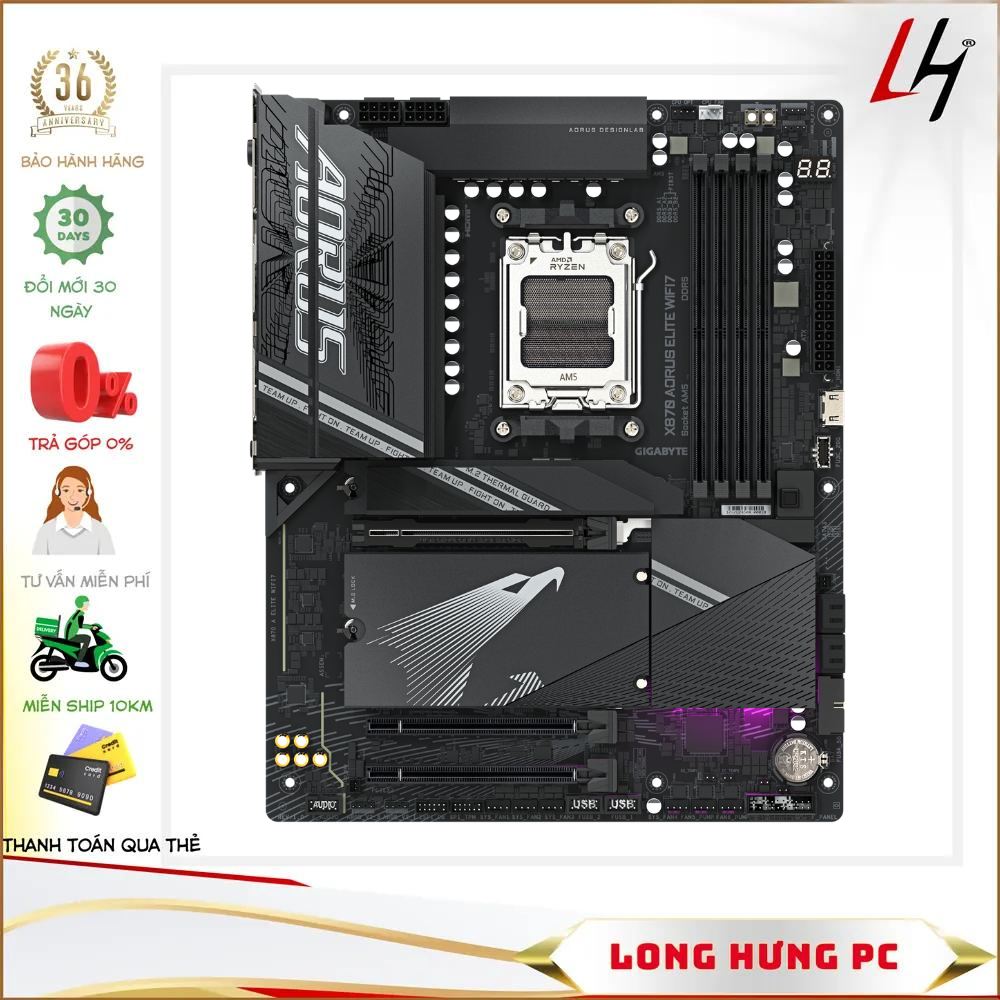

Mainboard Gigabyte X870 AORUS ELITE WIFI7

Model

 X870E AORUS ELITE WIFI-7

CPU

 AMD Socket AM5, support for:
 AMD Ryzen™ 9000 Series Processors/
 AMD Ryzen™ 8000 Series Processors/
 AMD Ryzen™ 7000 Series Processors
 (Go to GIGABYTE's website for the latest CPU support list.)

Chipset

 AMD X870

Memory

 Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory Dual channel memory architecture
 Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
 Support forAMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
 (The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to  "Memory Support List" on GIGABYTE's website for more information.)

Onboard Graphics

 Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
 - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz

 * Support for DisplayPort 1.4 version and HDR.

 Integrated Graphics Processor with AMD Radeon™ Graphics support:
 - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

 * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
 ** Support native HDMI 2.1 TMDS compatible ports.

 - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz

 * Support for HDMI 1.4 version

 (Graphics specifications may vary depending on CPU support.)
 Support for up to quad-display at the same time

Expansion Slots

 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
 AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode

 * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.

 When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
 AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
 AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
 (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)

 Chipset:
 - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

 * The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.

- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

Storage Interface

 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
 AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
 AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
 AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

  2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
  AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

 * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used.

 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

 * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

 RAID 0, RAID 1, and RAID 10 support for SATA storage devices

LAN

 Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication

 MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
 - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
 - BLUETOOTH 5.4
 - Support for 11be 160MHz wireless standard
 Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
 - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
 - BLUETOOTH 5.4
 - Support for 11be 160MHz wireless standard
 (Actual data rate may vary depending on environment and equipment.)

 * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
 **Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.

USB

 CPU+ASMedia USB4® controller:
 - 2 x USB4® USB Type-C® ports on the back panel
 CPU+USB 3.2 Gen 1 Hub:
 - 4 x USB 3.2 Gen 1 ports on the back panel
 CPU+USB 2.0 Hub:
 - 4 x USB 2.0/1.1 ports on the back panel
 Chipset:
 - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through
the internal USB header
 - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
 - 2 x USB 3.2 Gen 1 ports available through the internal USB header
 - 4 x USB 2.0/1.1 ports available through the internal USB headers

Audio

 Realtek® ALC1220 CODEC

 * The back panel line out jack supports DSD audio.

 High Definition Audio
 2/4/5.1/7.1-channel

 * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

 Support for S/PDIF Out

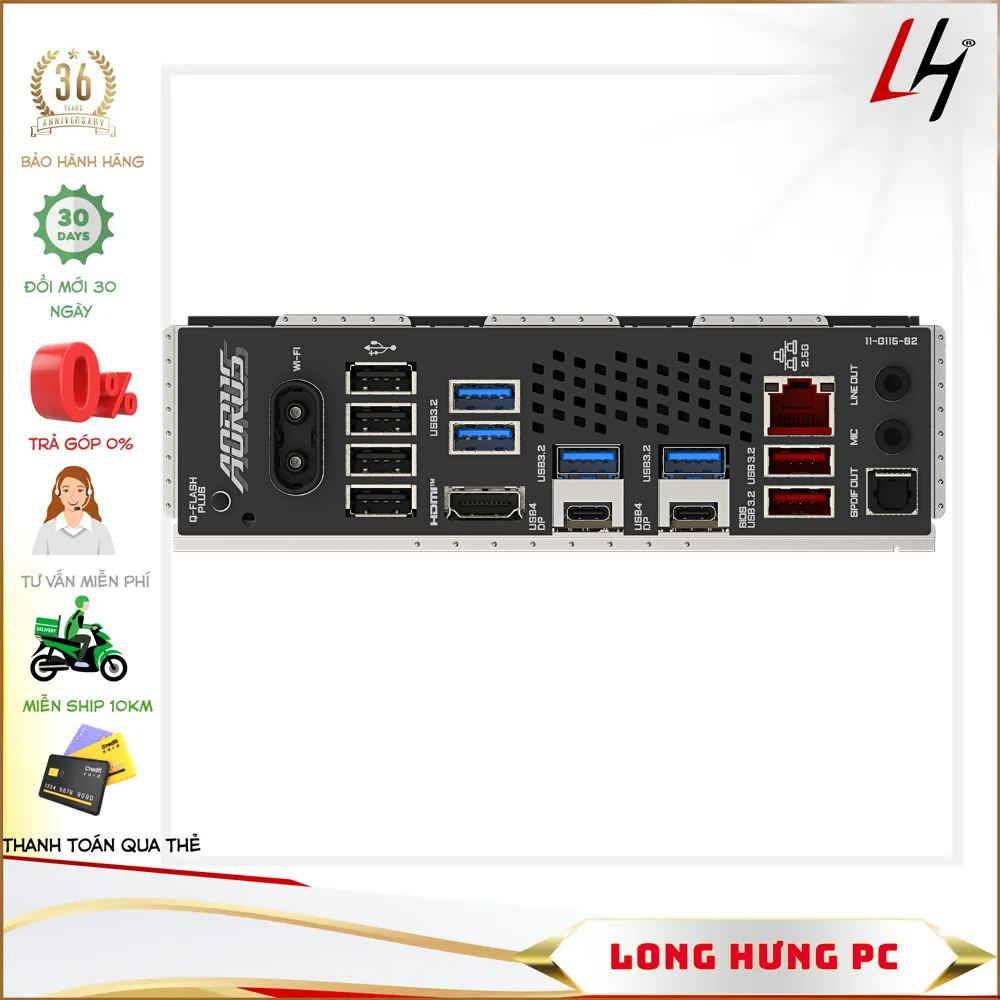

Back Panel I/O Ports

 1 x Q-Flash Plus button
 1 x HDMI port (Note)
 2 x SMA antenna connectors (2T2R)
 2 x USB4® USB Type-C® ports (DisplayPort (Note))
 2 x USB 3.2 Gen 2 Type-A ports (red)
 4 x USB 3.2 Gen 1 ports
 4 x USB 2.0/1.1 ports
 1 x RJ-45 port
 1 x optical S/PDIF Out connector
 2 x audio jacks

Internal I/O Connectors

 1 x 24-pin ATX main power connector
 2 x 8-pin ATX 12V power connectors
 1 x CPU fan header
 1 x CPU fan/water cooling pump header
 4 x system fan headers
 2 x system fan/water cooling pump headers
 3 x addressable RGB Gen2 LED strip headers
 1 x RGB LED strip header
 4 x M.2 Socket 3 connectors
 4 x SATA 6Gb/s connectors
 1 x front panel header
 1 x front panel audio header
 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
 1 x USB 3.2 Gen 1 header
 2 x USB 2.0/1.1 headers
 1 x noise detection header
 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
 1 x HDMI port (Note)
 1 x power button
 1 x reset button
 2 x temperature sensor headers
 1 x reset jumper
 1 x Clear CMOS jumper

Unique Features

 Support for GIGABYTE Control Center (GCC)

 * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

 Support for Q-Flash
 Support for Q-Flash Plus
 Support Smart Backup

I/O Controller

 iTE® I/O Controller Chip

BIOS

 1 x 256 Mbit flash
 Use of licensed AMI UEFI BIOS
 PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

H/W Monitoring

 Voltage detection
 Temperature detection
 Fan speed detection
 Water cooling flow rate detection
 Fan fail warning
 Fan speed control

 * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.

 Noise detection

Bundle Software

 Norton® Internet Security (OEM version)
 LAN bandwidth management software

Operating System

  Windows® 11, Windows® 10 64-bit

Form Factor

 ATX Form Factor; 30.5cm x 24.4cm

Model

 X870E AORUS ELITE WIFI-7

CPU

 AMD Socket AM5, support for:
 AMD Ryzen™ 9000 Series Processors/
 AMD Ryzen™ 8000 Series Processors/
 AMD Ryzen™ 7000 Series Processors
 (Go to GIGABYTE's website for the latest CPU support list.)

Chipset

 AMD X870

Memory

 Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory Dual channel memory architecture
 Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
 Support forAMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
 (The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to  "Memory Support List" on GIGABYTE's website for more information.)

Onboard Graphics

 Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
 - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz

 * Support for DisplayPort 1.4 version and HDR.

 Integrated Graphics Processor with AMD Radeon™ Graphics support:
 - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

 * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
 ** Support native HDMI 2.1 TMDS compatible ports.

 - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz

 * Support for HDMI 1.4 version

 (Graphics specifications may vary depending on CPU support.)
 Support for up to quad-display at the same time

Expansion Slots

 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
 AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode

 * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.

 When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
 AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
 AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
 (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)

 Chipset:
 - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

 * The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.

- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

Storage Interface

 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
 AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
 AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
 AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

  2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
  AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

 * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used.

 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

 * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

 RAID 0, RAID 1, and RAID 10 support for SATA storage devices

LAN

 Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication

 MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
 - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
 - BLUETOOTH 5.4
 - Support for 11be 160MHz wireless standard
 Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
 - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
 - BLUETOOTH 5.4
 - Support for 11be 160MHz wireless standard
 (Actual data rate may vary depending on environment and equipment.)

 * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
 **Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.

USB

 CPU+ASMedia USB4® controller:
 - 2 x USB4® USB Type-C® ports on the back panel
 CPU+USB 3.2 Gen 1 Hub:
 - 4 x USB 3.2 Gen 1 ports on the back panel
 CPU+USB 2.0 Hub:
 - 4 x USB 2.0/1.1 ports on the back panel
 Chipset:
 - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through
the internal USB header
 - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
 - 2 x USB 3.2 Gen 1 ports available through the internal USB header
 - 4 x USB 2.0/1.1 ports available through the internal USB headers

Audio

 Realtek® ALC1220 CODEC

 * The back panel line out jack supports DSD audio.

 High Definition Audio
 2/4/5.1/7.1-channel

 * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

 Support for S/PDIF Out

Back Panel I/O Ports

 1 x Q-Flash Plus button
 1 x HDMI port (Note)
 2 x SMA antenna connectors (2T2R)
 2 x USB4® USB Type-C® ports (DisplayPort (Note))
 2 x USB 3.2 Gen 2 Type-A ports (red)
 4 x USB 3.2 Gen 1 ports
 4 x USB 2.0/1.1 ports
 1 x RJ-45 port
 1 x optical S/PDIF Out connector
 2 x audio jacks

Internal I/O Connectors

 1 x 24-pin ATX main power connector
 2 x 8-pin ATX 12V power connectors
 1 x CPU fan header
 1 x CPU fan/water cooling pump header
 4 x system fan headers
 2 x system fan/water cooling pump headers
 3 x addressable RGB Gen2 LED strip headers
 1 x RGB LED strip header
 4 x M.2 Socket 3 connectors
 4 x SATA 6Gb/s connectors
 1 x front panel header
 1 x front panel audio header
 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
 1 x USB 3.2 Gen 1 header
 2 x USB 2.0/1.1 headers
 1 x noise detection header
 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
 1 x HDMI port (Note)
 1 x power button
 1 x reset button
 2 x temperature sensor headers
 1 x reset jumper
 1 x Clear CMOS jumper

Unique Features

 Support for GIGABYTE Control Center (GCC)

 * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

 Support for Q-Flash
 Support for Q-Flash Plus
 Support Smart Backup

I/O Controller

 iTE® I/O Controller Chip

BIOS

 1 x 256 Mbit flash
 Use of licensed AMI UEFI BIOS
 PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

H/W Monitoring

 Voltage detection
 Temperature detection
 Fan speed detection
 Water cooling flow rate detection
 Fan fail warning
 Fan speed control

 * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.

 Noise detection

Bundle Software

 Norton® Internet Security (OEM version)
 LAN bandwidth management software

Operating System

  Windows® 11, Windows® 10 64-bit

Form Factor

 ATX Form Factor; 30.5cm x 24.4cm
